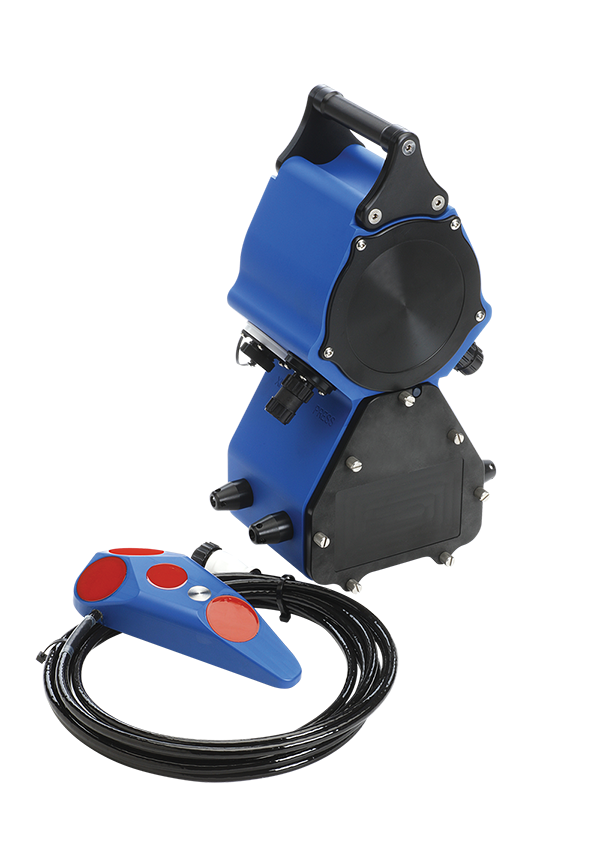

The Vertical Acoustic Doppler Current Profiler (Vertical ADCP) is designed for the high-accuracy measurement of water flow, level and velocity profile in open channels, rivers, streams, and irrigation channels.
The Vertical ADCP can be deployed as a self-contained instrument recording data for later use; as a real-time instrument for real-time measurements; or as a portable flow meter, with the option to move from station to station.
Key Features:
- Teledyne RDI’s Broadband technology , which allows for small cells and/or short averaging/sampling intervals and highly accurate velocity data.
- Range of 3–150 user-selectable velocity measurement cells, with cell sizes from 3cm–20cm and profiling range from 0.2m–5m.

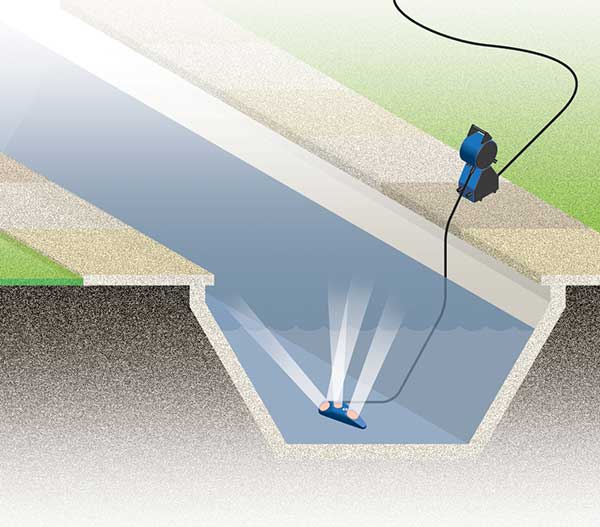

- Small transducer mounted to bottom of open channel allows for less flow disturbance.
- Accurate acoustic water level sensor.
- No calibration required, providing a cost-effective solution.
| Water Velocity Profiling |
Profiling range |
0.2m1 to 5m2 |
|
| (Broadband mode) |
Velocity range |
±5m/s default, ±20m/s maximum |
| |
Accuracy |
±0.5%, ±2mm/s |
|
| |
Resolution |
1mm/s |
|
| |
Number of cells |
3–150 |
|
| |
Cell size |
3cm to 10cm |
|
| |
Blanking distance |
3cm |
|
| |
Data output rate |
User-programmable, 1Hz maximum |
| |
Flow measurement accuracy |
2-5%3 |
|
| Transducer and Hardware |
Frequency |
2.4mHz |
|
| |
Configuration |
Three beams (velocity measurement) |
| |
Beam angle |
20°, ±25° |
|
| |
Beam width |
0.95° |
|
| |
Internal memory |
4MB |
|
| |
Communications |
Interface: RS-232 |
|
| |
|
Baud rate: 1200 to 115,200bps |
|
| Standard Sensors |
Sensor |
Temperature |
Acoustic Stage |
| |
Range |
-5°C to 45°C |
0.1-10m (default) |
| |
Accuracy |
±0.5°C |
±0.1%, ±3mm |
| |
Resolution |
0.01°C |
0.1mm |
| Software |
WindowsTM-based: • PlanCV: Deployment planning |
|
| |
• Q-Monitor-V: System set-up, data acquisition, playback, and flow calculation |
| Power |
Input |
10–28VDC |
|
| |
Internal battery |
3@6VDC alkaline lantern batteries, 570wh |
| |
Consumption |
0.11w @ 10% duty cycle |
|
| Environmental |
Operating temperature |
-5°C to 40°C |
|
| |
Storage temperature |
-25°C to 60°C |
|
| |
Vibration |
meets IEC 60721-3-2 standard |
|
| |
Housing weight |
5.2kg (with internal battery) |
|
| Dimensions |
|
|
|
| |
Housing |
Length 340mm; width 180mm; depth 140mm |
| |
Transducer |
Length 202mm; width 92mm; depth 39mm |
| |
|
|
|
| 1 Assume one good cell (minimum cell size); range measured from the transducer surface. |
|
| 2 Assume fresh water; actual range depends on temperature and suspended solids concentration. |
|
| 3 Assume narrow channels. |
|
|
|
