3D Multibeam Scanning Sonar

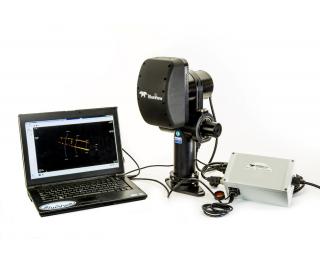

Teledyne Blueview's 3D Multibeam Scanning Sonar create high resolution, laser-like, imagery of underwater areas, structures and objects of interest, even in low to zero visibility conditions. The 3D system is simple to deploy, easy to operate, provides highly detailed 3D point clouds with minimal training from a tripod, an ROV, surface vessel or customized deployment solution. The BV5000 collects 3D point clouds without positioning, heading, pitch or roll information from a stationary platform and can collect motion compensated 3D point clouds using the

MotionScan

kit. When the BV5000 is combined with

QuickStitch

software, a streamlined software package for viewing, cleaning, aligning, measuring and creating profiles, the complete 3D solution delivers turn-key 3D to customers.

Applications

  • 3D site survey
  • 3D structure inspection
  • Oil field inspection
  • Scour monitoring
  • Bridge inspections
  • Undercut inspection and monitoring
  • Spalling inspection and monitoring
  • NEW! BlueView metrology

Features

  • .XYZi files are compatible with 3rd party survey software packages
  • Manually adjustable scan speed from 1-10 degrees a second
  • 2 model options (1.35 & 2.25 MHz)
  • Standard Ethernet/RS485 interface
  • Easy Windows based software
  • Scan speeds from .5 to 10 degrees a second

Benefits

  • Easy, one touch scan function
  • 3D mosaic imaging with or without position info
  • Easily combined with laser scan imagery
  • Compact size fits into tight spaces
  • Operates in low & zero visibility conditions

Inclusions

  • 3D sonar head (1.35 or 2.25 MHz)
  • Pan & Tilt with mounting hardware http://www.rosys.com/shop/p20-rs-485-pan-tilt/
  • Sonar/Pan & Tilt junction box
  • Shipping case
  • Accessory Kit - Retract-A-Bit Hex Driver; 7 ft. Cat 5 Ethernet Cable; 15 ft. Sonar/Pan & Tilt Cable; 2 m USB Cable; 15A US Power Cord; RS485 to USB Driver CD; ProScan BlueViewer
  • BV5000 User Handbook
  • Quick Start Guide
  • 1 year warranty

Optional Equipment, Software & Services

  • QuickStitch (Viewing, cleaning, aligning, measuring and profile generation software)
  • MotionScan (Hardware and software to create motion compensated 3D point clouds)
  • 15 ft. Sonar/Pan & Tilt cable (1 included w/ BV5000 accessory kit)
  • 150 ft. Sonar/Pan & Tilt cable assembly (Used for tripod mount systems)
  • 4 ft. Sonar/pan & Tilt cable whip kit w/ wiring diagram (Used for ROV mount systems)
  • EXC-600 Ethernet Extender Kit (Used for long haul single twisted pair communication, up to 2000ft)
  • Leica Cyclone Register software
  • Leica Cyclone Model software
  • Leica Cyclone Register Customer Care Package (CCP)
  • Leica Cyclone Model Customer Care Package (CCP)
  • Cyclone/BlueView manual (ships with Cyclone software)
  • On-Site "Getting Started" hardware/software training
  • Leica Cyclone "On-Site" training
  • Extended warranty (per year)

BV5000-1350 BV5000-2250-N / 2250-W
Sonar & Software
Sector/Spherical Scan Area (°): 45 - 360 45 - 360
Sonar Field of View (°): 42 x 1, 76 x 1 42 x 1, 76 x 1
Update Rate (Hz): Up to 30 Up to 30
Frequency (MHz): 1.35 2.25
Maximum Range: 30 m (98 ft.) 10 m (32 ft.)
Optimum Range: 1 - 20 m (3.2 - 65 ft.) 0.5 - 7 m (1.6 - 23 ft.)
Number of Beams: 256 256
Beam Width (°): 1 x 1 1 x 1
Beam Spacing (°): 0.18 0.18
Time Resolution: 0.015 m (0.59 in.) 0.010 m (0.39 in.)
Data Output Format: .son and .xyzi files .son and .xyzi files
Mechanical
Size (L x W x H in inches): 10.5 x 9.2 x 15.4 8.9 x 8.6 x 15.4
Weight in Air/Water (lbs.): 21.7/8.2 19.1/6.0
Depth Rating: 1000 m (3,280 ft.)
4,000 m (13,123 ft.)
1000 m (3,280 ft.)
4,000 m (13,123 ft.)
Communication (Sonar/Pan & Tilt): Ethernet/RS485 Ethernet/RS485
Power Consumption (W): 45 max. 45 max.
Power Requirement (V DC): 20 - 29 20 - 29
