Liner sampler, set for soft soils, 7 m

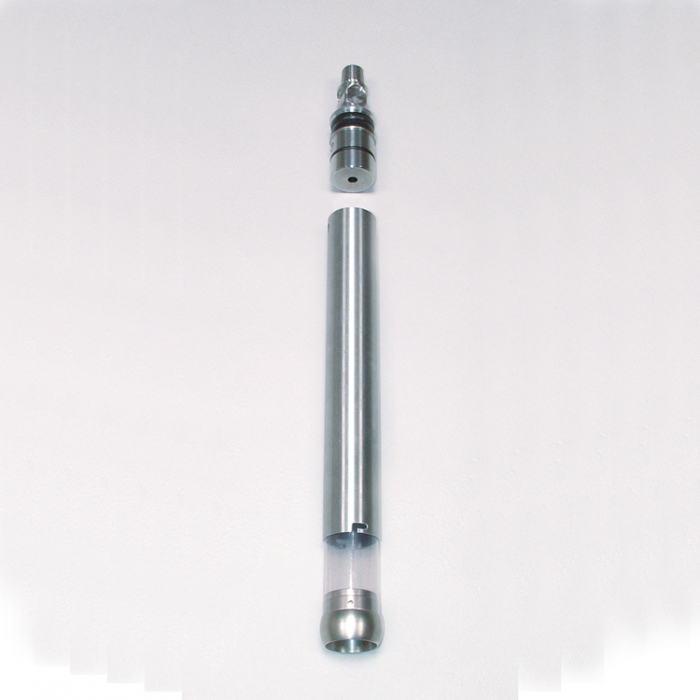

With these sets, with bayonet connection, undisturbed soil samples can be taken in a liner applying a stainless steel core sampler with sample tubes and cutting head. In soft soils the sampler is pressed into the soil, possibly using the push/pull handle. The set contains, among other things: a hand auger for pre- and clean drilling of the bore hole, the core sampler with the sampler tubes, the sample foils, soil sample containers and maintenance equipment.

Benefits Liner sampler set

  • Liner allows easy removal of sample
  • View the sample directly in the field
  • View the sample without touching
  • Set B more applicable for harder soils
  • Stainless steel sampler body


  • Liner will sorb volatiles


The set is packed in an aluminium transport case. In case of an undisturbed sample it is often difficult to remove the sample from the sampler tube. By using sample liners it is easy to remove the sample from the tube. The sample, still in the liner, is stored in a container which can be sealed, for transport to the laboratory.


Samples are suitable for:

  • Soil fertility determinations.
  • assess of soil structure.
  • Volume weight determinations.
  • Determination of granular composition.
  • Soil technical measurements.
  • Field education.

Liner sampler, set for soft soils, 7 m



Maximum sample depth

7 m

Product material

stainless steel, iron, other material

Sample diameter

37 mm

Sample length

20 cm

Sample specification


Sample stored in


Package size

117 x 27 x 23 cm


27.54 kg


Soil sampling above groundwater table

Soil sampling below groundwater table

Environmental soil research

Undisturbed sampling

Root zone sampling
