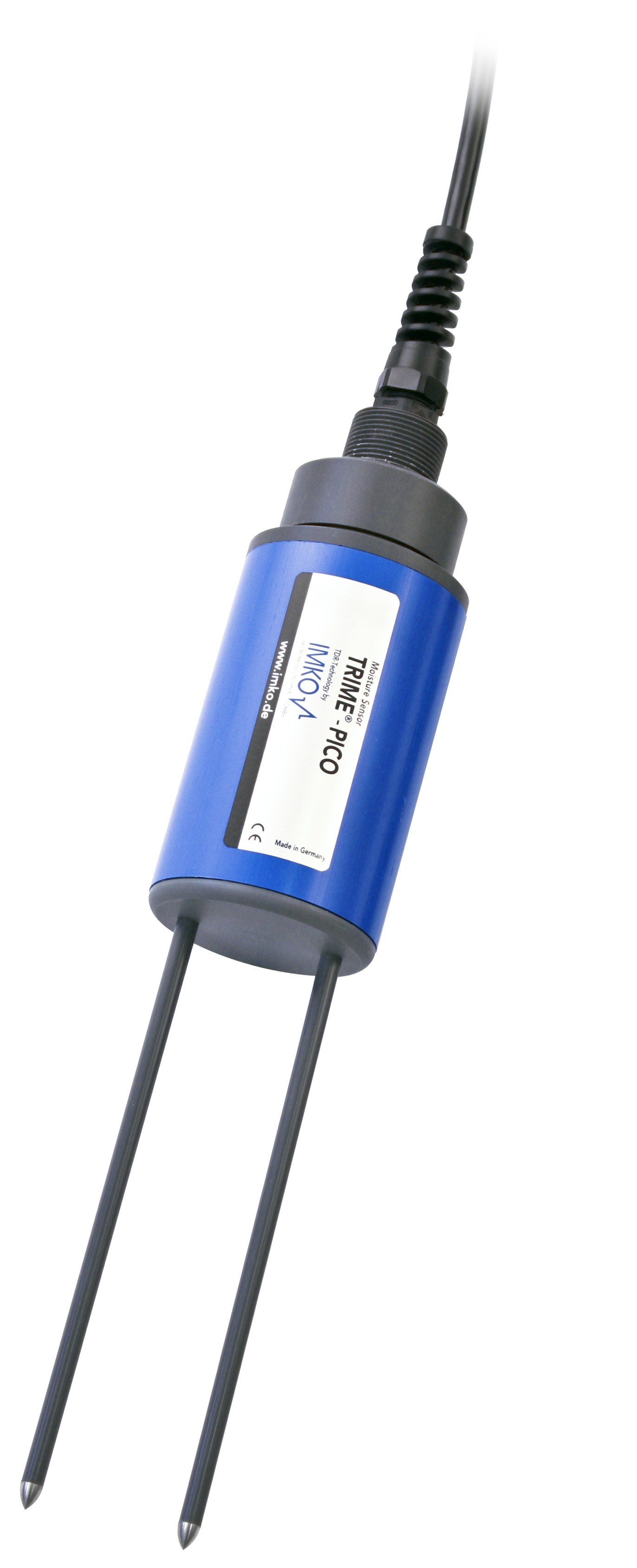

PICO 64 Nem Ölçüm Sensörü

PICO-64 Soil Moisture Sensor

Measure Moisture in Soil, Sand and Gravel

  • Highest accuracy by the use of the latest TDR electronics
  • NEW: Measures 3 important Parameter:
    • Water Content
    • Temperature
    • Electrical Conductivity (EC) and Salt Content
  • NEW: with SDI-12 interface
  • Measure direct 0...100% vol. soil water content
  • Bulk soil electrical conductivity up to 20dS/m
  • Large measurement volume > 1250ml
  • Rugged (IP68), proven and suitable for long-term installationsA RELIABLE, PRACTICAL AND EASY-TO-USE DETERMINATION OF SOIL CONDUCTIVITY AND SALT CONTENT WITH TRIME PROBES: PICO 64, PICO 32 AND PICO IPH T3/44.
  • IMKO´s TRIME TDR-probes can now report soil EC as standard simultaneously with soil moisture content percentage. A manual conversion based on researched curves for different soil types enables the user to derive a soil EC expressed in mg/l TDS (total dissolved salts).
  •
  • Description: https://imko.de/images/stories/products/pico64/messvolumenTHUMB_EN.png
  • TRIME probes measure conductivity with the same large soil volume as it will be used for the TDR moisture measurement. The contact of the probe rods inside the soil is far less critical as with "galvanic" EC probes with a point to point measurement where even small air gaps lead to significant deviations.
  • TRIME probes use coated and therefore isolated rods which guarantee the non-appearance of galvanic accumulation along the rods allowing for long-run installations over many years. Unisolated rods means there is a risk of galvanic reactions and possible influence on the sensor´s reading with serious problems when the probes must be removed from larger depths due to a rod cleaning.
  • TRIME probes measure moisture and conductivity very precisely at a frequency of 1GHz with a better and more exact separation of moisture and conductivity in comparison to capacitive probes with lower frequencies. This means that in practice, a reliable determination of the pore water conductivity ECw and respectively TDS (mg of salt per liter water) is possible at different moisture levels.
  • All TRIME probes work with a concurrently basic calibration for moisture and conductivity. This allows a check of the limits of saline stress in soils according to standards of FAO2006 for specific soils.

TRIME PICO-64 Soil Moisture Sensor

Power supply:

7V..24V-DC

Power consumption:

100mA @ 12V/DC during 2..3sec. of measuring

Moisture measuring range:

0..100% volumetric water content

Accuracy (in % volumetric water content):



conductivity range:

0..6dS/m

6..20dS/m

> 20dS/m

Moisture range 0..40%:

±1%

±2%

with material
specific calibration

Moisture range 40..70%:

±2%

±3%

Repeating accuracy:

±0.2%

±0.3%

Temperature caused drift of electronics
(full range):


±0.3%

Soil temperature measuring range:

-15°C...50°C

Soil temperature measuring accuracy:

±1,5°C absolute, ±0,5°C relative


Measurement volume:

1,25L ? 160x100mm diameter

Operating Temperature:

-15°C...50°C (extended temperature range on request)

Calibration:

Calibration for a wide range of standard soil types (in accordance with Topp (equation))



standard calibration for most soils
customizable material specific calibration
storage of up to 15 user defined calibration curves
calibration of dialectric permittivity is possible

Probe body:

waterproof sealed PVC (IP68)

Size:

155 x Ø63mm

Rod lenght:

standard: 160mm

Rod diameter:

6mm

Interfaces:

IMP-BUS
RS485
Analogue output: 2x 0..1V, 0(4)..20mA*

Options



Interfaces

Application

Cable length

Connector

RS485 & analogue

mobile for HD2 & PICO-BT

1,5m

7-pin female

IMP-BUS

for globeLog datalogger

5m (special length on request)

4-pin female

RS485, IMP-BUS & analogue

for analogue datalogger
Optional: E-BOX (cabel extension box)
Optional available for cable extension and current output: C-BOX (0,1V zu 0(4)..20mA converter box)

5m (special length on request)

10-pin end splices

SDI-12, IMP-BUS & analogue

for SDI-12 datalogger

5m (special length on request)

9-pin end splices
